- Size: 0.289*0.295*0.46
- Place of Origin: Shandong Jinan
- Brand Name: Over the head

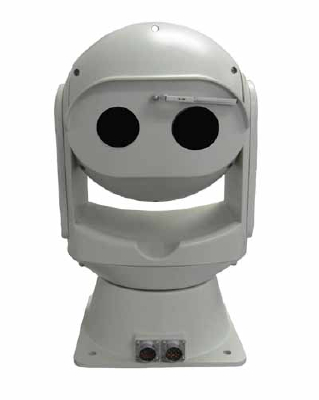

- Model Number: FY-PT260
- Weight: 12.000 kg
Product number
FY-PT260
PTZ
spinning speed
Level 0.01 ° ~ 60 ° / S; Pitch 0.01 ° ~ 30 ° / S;
Rotation angle
Level 0 ~ 360 ° continuous rotation; tilt 60 ° ~ -60 °;
Preset
200
Preset Accuracy
Up to ± 0.1 °
Position, focal length, etc. return
Optional
Automatic cruise
8, each point can be set to 10 cruise
Automatic homing
1 to 60 minutes can be set to automatic homing time
Auto Scan
1
Protocol
Pelco-D, Pelco-P Optional
Communication baud rate
2400/4800/9600/19200 bps optional
Communication Interface
RS485 (optional RS422)
Wiper
stand by
General Specifications
Input Supply Range
AC24V ± 20%, 50 / 60Hz; DC28V ± 20%;
Total power consumption
≤60W
Operating temperature
-25 ℃ ~ 55 ℃
Storage temperature
-40 ℃ ~ 65 ℃
Working humidity
<90% RH
Destinations
Contained
transfer method
Belt drive
Protection class
IP66
Material
Die-casting aluminum
Total Weight
<12Kg
Dimensions
289.2mm × 294.5mm × 460.3mm (L × W × H)
