- Size: 0.18m*0.185m*0.26m
- Place of Origin: Shandong Jinan
- Brand Name: Over the head
- Model Number: FY-SP1010
- Weight: 5.500 kg

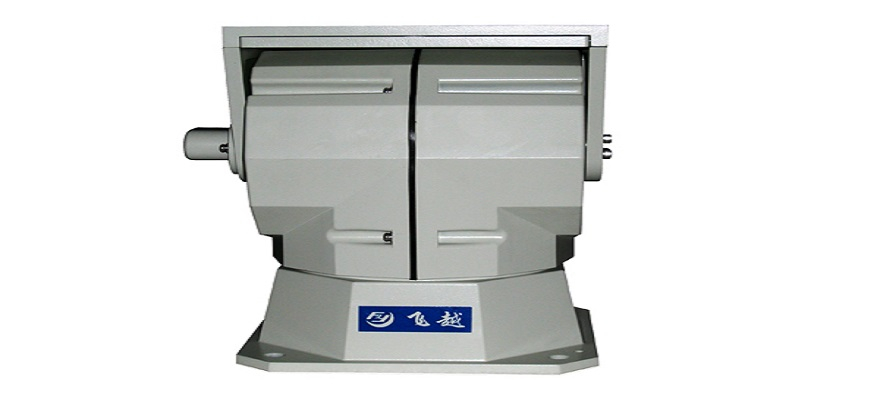

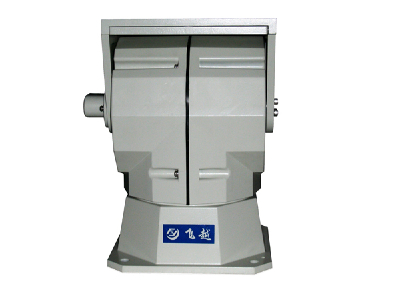

Head models
FY-SP1010
spinning speed
Level 0.1 ° ~ 8 ° / S; tilt 0.1 ° ~ 6 ° / S;
Rotation angle
Level 0 ~ 360 ° continuous rotation; tilt 60 ° ~ -60 °;
Preset
200
Preset Accuracy
Up to ± 0.2 °
Position, focal length, etc. return
Optional
auxiliary switch
Group 2, passive, normally open
Lens Presets
Support, adaptive variety of lenses
Automatic cruise
8, each point can be set to 10 cruise
Automatic homing
1 to 60 minutes can be set to automatic homing time
Auto Scan
1
Protocol
Pelco-D, Pelco-P Optional
Communication baud rate
2400/4800/9600/19200 bps optional
Communication Interface
RS485 support angle queries return (optional RS422, instantaneous feedback)
Input Supply Range
AC24V ± 20%, 50 / 60Hz; DC28V ± 20%;
Total power consumption
≤20W
Operating temperature
-25 ℃ ~ 65 ℃, 90% ± 3%, non-condensing (optional -40 ℃ ~ 65 ℃)
Storage temperature
-40 ℃ ~ 70 ℃
Maximum load
10Kg
Destinations
Top load (side load optional)
Protection class
IP66
Total Weight
5.5Kg
Dimensions
180mm × 185mm × 260mm (L × W × H)
